Speaking Volutes


Headstock Joints and Volutes on Early C. F. Martin Guitars

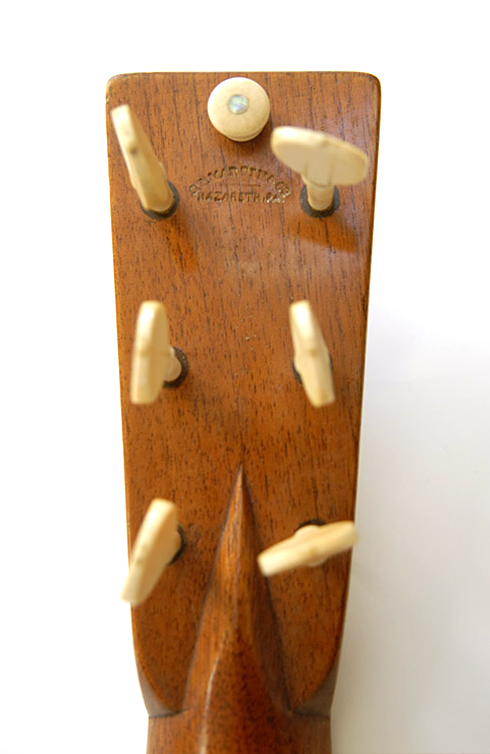

Early C. F. Martin guitars were built with a three piece black "ebonized" neck, with a separate headstock, neck, and heel, or a two piece cedar neck with a headstock joined to the one piece neck and heel.  The head and neck were usually joined with a visible "volute" protruding from the back of the headstock joint.

After Martin started building with a one piece mahogany neck, the volute remained on Styles 28 and higher, perhaps as a vestigal decorative element, perhaps to strengthen the transition from headstock to neck.



Stauffer c. 1820





Martin & Coupa Koa





Martin & Coupa Spanish





1840's Ivory Fingerboard Spanish Martin







The earliest necks with slotted headstocks were ebonized, or painted black, and had "ice cream" style heels.



1840's Spanish Style Martin




1896 Martin 0-42











1870's Martin 2 1/2 - 26





1885 Martin 0-34





1894 Martin 0-42



1896 Martin 4-42





Martin 1860 2-24



Martin 1870's 1-26






Martin 1870's 1-28

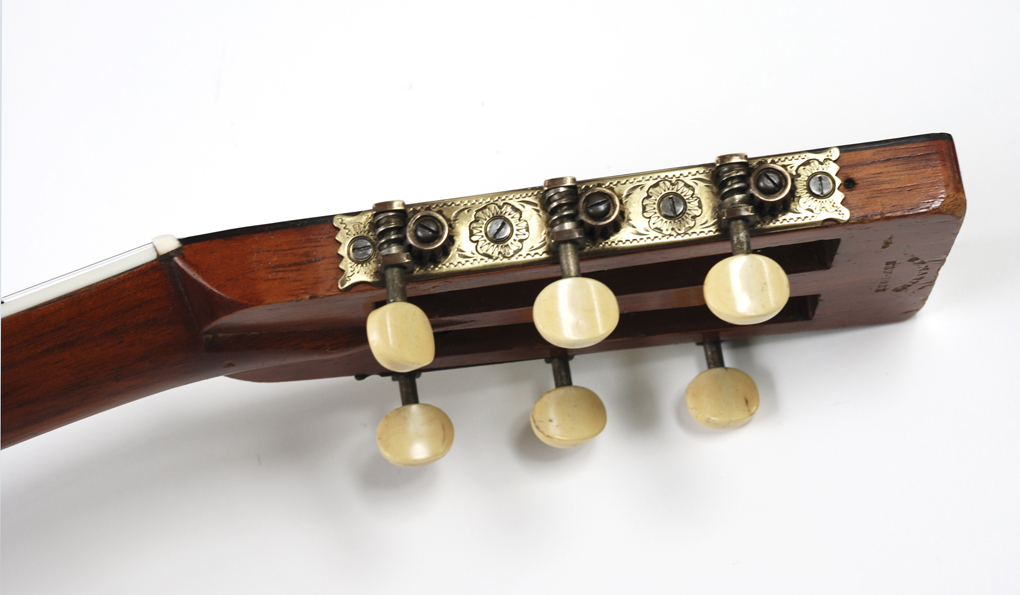

Martin 1893 2-27

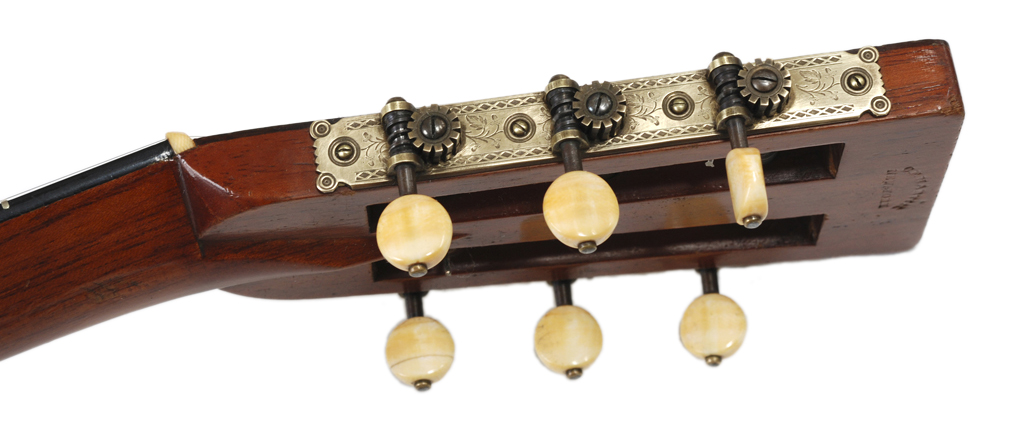

Martin 1897 1-21
